Description
Key features
- 5.2 cannels
- 80 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
- Powered Zone 2 Zone
- B Line OUT
- Dolby Atmos Height Virtualizer DTS Virtual:X
- Calibrare sistem: AccuEQ Room Acoustic Calibration with AccuReflex
- H.C.P.S. (High Current Power Supply)
- Impedanta boxe: 4 - 16 ohm
- Analog Audio IN: 3, Optic IN, Coaxial IN, USB Input, HDMI 4 IN / 1 Video OUT
- Bluetooth 4.2, Profile: A2DP 1.3, AVRCP 1.5
- Tunner FM
What's in the box

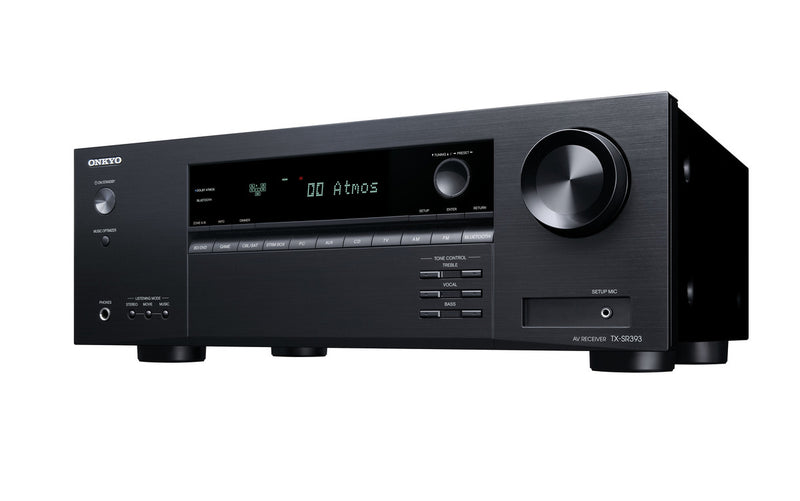

- 5.2ch AV receiver
- Remote control (RC-970R)
- 2 "AAA" batteries
- Setup microphone
- FM wire antenna
- AM loop antenna
- Initial Setup Guide
- Safety Information
- Warranty/Product Registration Information
Tech specs
Link producător:
Alte specificații
Power and processing:
5-channel amplifier 80 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
Dolby® and DTS® surround sound decoding
Dolby Atmos processing for use with in-ceiling or "height" speakers for more enveloping surround sound
DTS:X for an immersive, 3-dimensional soundstage
AccuEQ speaker calibration optimizes your system's sound for your room (microphone included)
built-in Bluetooth for wireless music streaming from a compatible phone, tablet, or computer
Audio performance features:
high-current amplifier design
32-bit/384kHz digital-to-analog converter for clear sound from digital sources
Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
Connections:
HDMI audio/video switching: 4 in, 1 out
HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (HDCP 2.3-compatible with free future firmware update)
HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
supports HDR10, Dolby Vision™, and HLG
digital audio inputs: 1 optical and 1 coaxial
3 analog stereo audio inputs
zone B stereo line-level outputs
preamp outputs for 2 powered subwoofers
rear-panel USB port for powering an external device (does not support music playback)
outputs for 5 speakers (Front L/R, Center, Surround L/R)
General features:
4K/60p and 3D video pass-through
HDMI standby pass-through allows access to all HDMI connected devices without having to power on the receiver
40 AM/FM presets
remote control 17-1/8"W x 6-5/16"H x 12-15/16"D
weight: 8.2 kg
